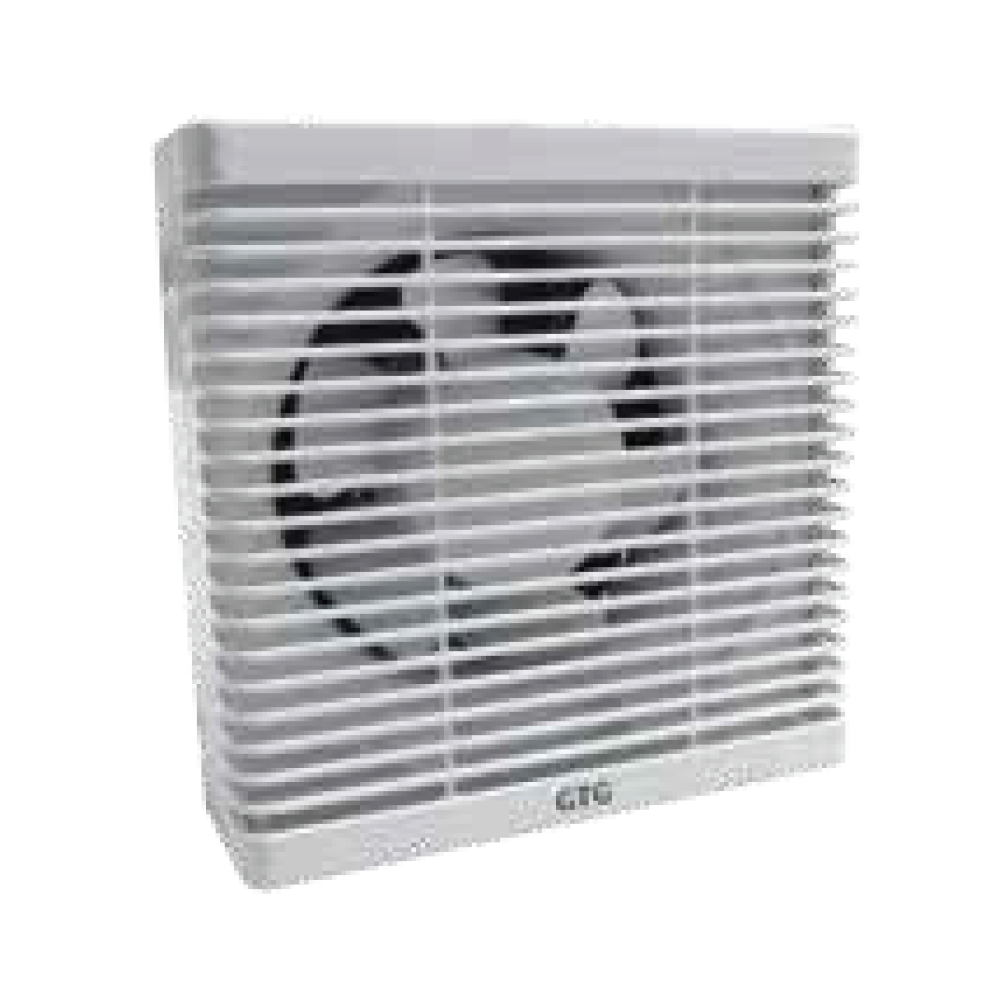

Wall Mounted Ventilating Fan
The Breezer VX series is direct drive propeller fan specially designed for wall mounted application. It produces high air volume at high static with low operating sound. The unit impeller is made of plastic and factory matched, statically and dynamically balanced with the motor. The fan housing is made with steel sheet/ABS plastic, equipped with louver grille and built in oil trap. The unit motor is Class E insulation and has built in thermal protection device.
Size ranges from 6inch to 12inch fan diameter
It is suitable for use in condominium, restaurants, office, hotel, school, toilet.
| Model | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | Installation Space (mm) | Applicable Area (m²) |
|---|---|---|---|---|---|---|---|---|
| WX6AL | 239 | 150 | 239 | 188 | 83 | 70 | 200 X 200 | 16~20 |
| WX8AL | 296 | 200 | 296 | 240 | 67 | 83 | 250 X 250 | 20~25 |
| WX10AL | 342 | 250 | 342 | 290 | 73 | 84 | 300 X 300 | 30~37 |
| WX12AL | 400 | 300 | 400 | 340 | 86 | 84 | 350 X 350 | 42~55 |
| Model | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | Installation Space (mm) | Applicable Area (m²) |
|---|---|---|---|---|---|---|---|---|
| WX6AL | 239 | 150 | 239 | 188 | 83 | 70 | 200 X 200 | 16~20 |
| WX8AL | 296 | 200 | 296 | 240 | 67 | 83 | 250 X 250 | 20~25 |
| WX10AL | 342 | 250 | 342 | 290 | 73 | 84 | 300 X 300 | 30~37 |
| WX12AL | 400 | 300 | 400 | 340 | 86 | 84 | 350 X 350 | 42~55 |
