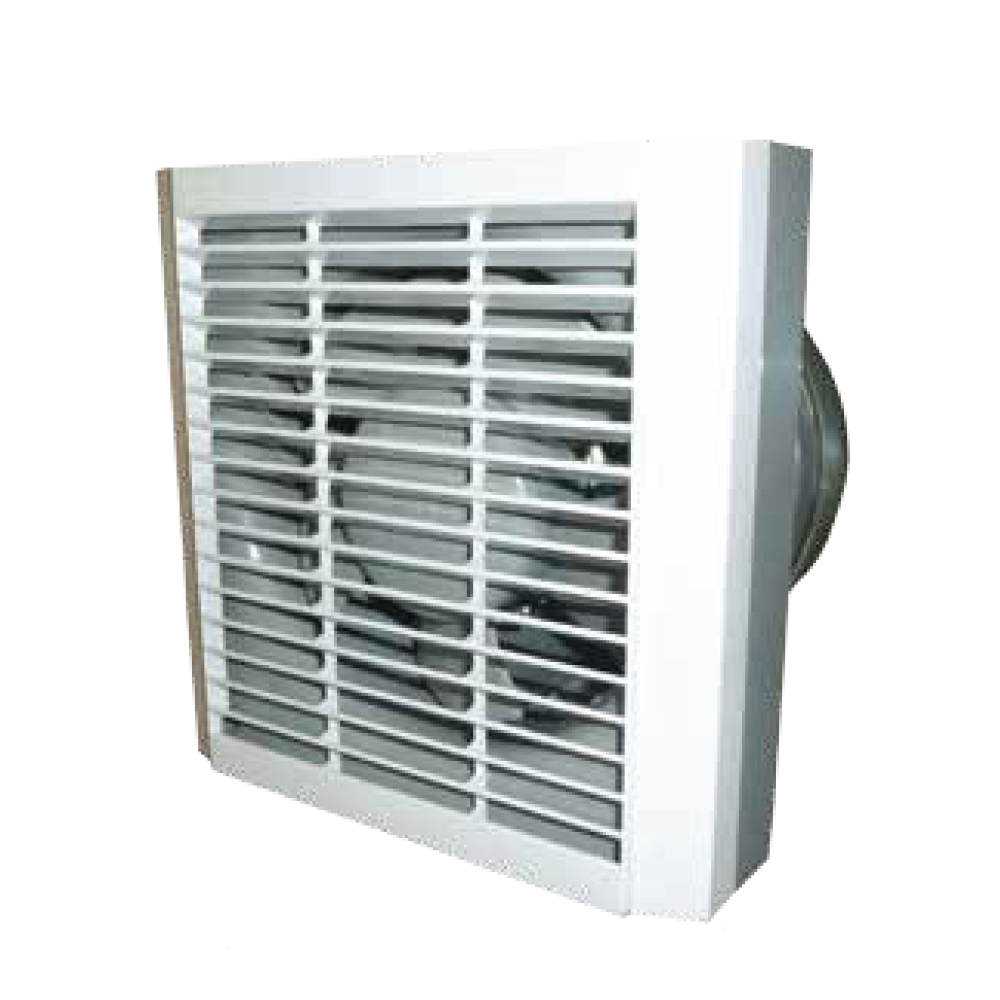

Wall / Glass Mounted Ventilating Fan
GM Series is specially designed for direct exhaust to outdoor for both domestic and commercial premises. It produces high air volume at whisper quiet operations. Its aesthetic louver grille can blend with any interior designs. It is suitable for use in toilets, bathrooms, kitchens, living rooms, restaurants, bedrooms. The unit is equipped with soft landing of shutter plates prevents noise of sudden shutting from overhead wind, block outdoor dust and insects and maintain indoor temperature. The unit can operate against strong outdoor wind velocity encountered by highrise building
Size ranges from 6 inch and 8 inch fan diameter
Model | Size (in/mm) | Volt/Ph/Hz | Input Power (w) | Air Volume (CMH) | Sound Pressure dB(A) @3m |
---|---|---|---|---|---|
GM6E | 6/150 | 230/1/50 | 24 | 174 | 45 |
GM8E | 8/200 | 230/1/50 | 28 | 432 | 48 |
Model | Size (in/mm) | Volt/Ph/Hz | Input Power (w) | Air Volume (CMH) | Sound Pressure dB(A) @3m |
---|---|---|---|---|---|
GM6E | 6/150 | 230/1/50 | 24 | 174 | 45 |
GM8E | 8/200 | 230/1/50 | 28 | 432 | 48 |
