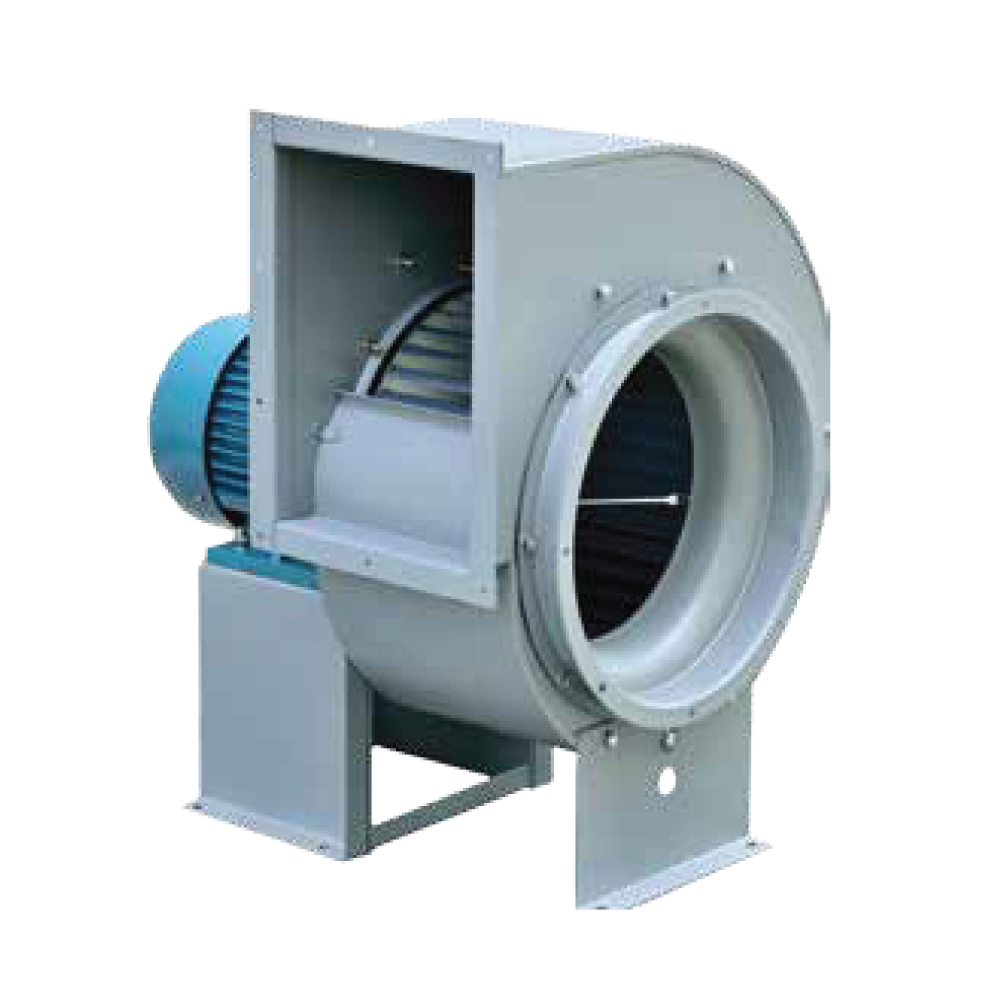

Medium Sirocco Fan
MSF Series is direct drive forward curve centrifugal fan specially designed for residential and commercial application. It produces high air volume at high static with low operating sound. It direct drive configuration is advantageous in that there is no need for periodic belt tensioning adjustment or replacement. Drain plug is also provided for easy maintenance. Its discharge orientation can be adjusted (choices of 0°,90°,180°) to suit job site requirements
Size ranges from 250mm to 500mm fan diameter.
It is suitable for use in kitchen, office, school, hotel, hospital , warehouse, toilet.
Impeller:
- High efficiency forward curve sirocco fan
- Electronically and dynamically balanced for low noise operation
Casing:
- Made of steel with anti-rust painting
- Discharge orientation can be adjusted to suit job site conditions
- Choice of discharge: 0°, 90°, and 180°
- Access door and drain plug provided for easy cleaning and maintenance
Motor:
- Three-phase squirrel cage induction motor
- Insulation: Class B
- IP: 44
- High efficiency forward curve sirocco fan
- Electronically and dynamically balanced for low noise operation
- Made of steel with anti-rust painting
- Discharge orientation can be adjusted to suit job site conditions
- Choice of discharge: 0°, 90°, and 180°
- Access door and drain plug provided for easy cleaning and maintenance
- Three-phase squirrel cage induction motor
- Insulation: Class B
- IP: 44
